The Mystery of the Iron Bridge

BBC Time Watch

October 2001, shown early 2002.

Contact us01484 428203

Crown Joint Details

Photographs and Drawings of the Crown Joint at the apex of the conjoining ribs

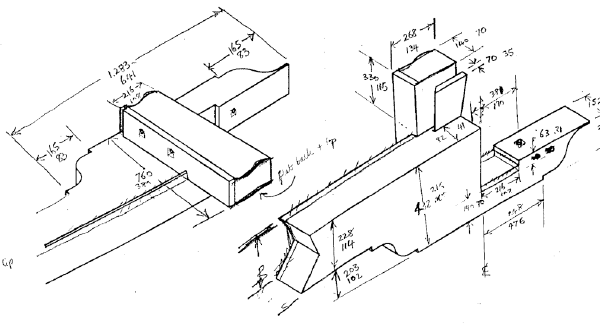

Ironwork drawing

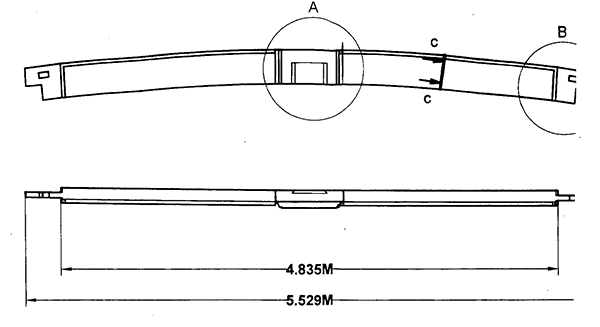

Ironwork drawing
Ironwork drawing

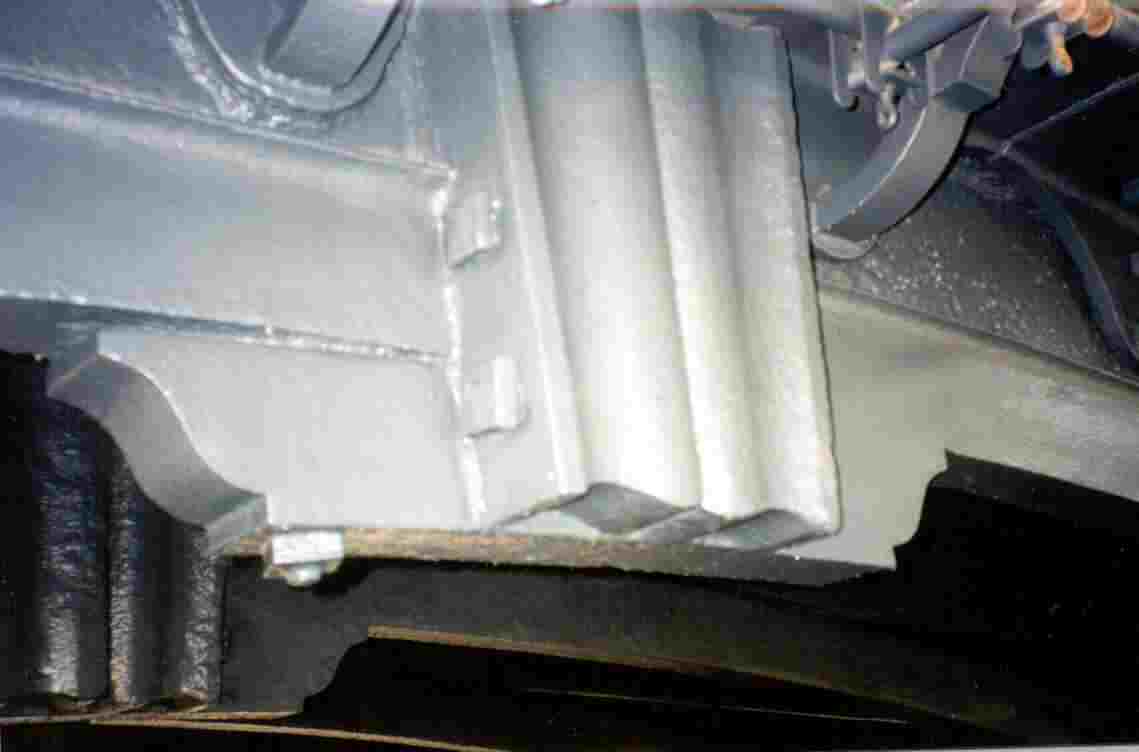

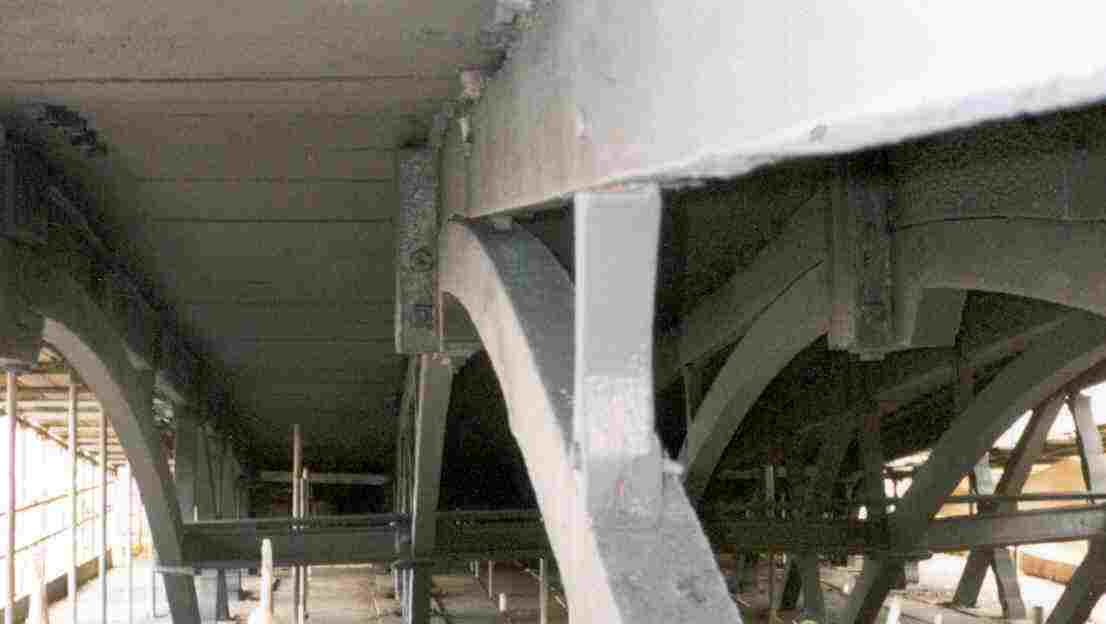

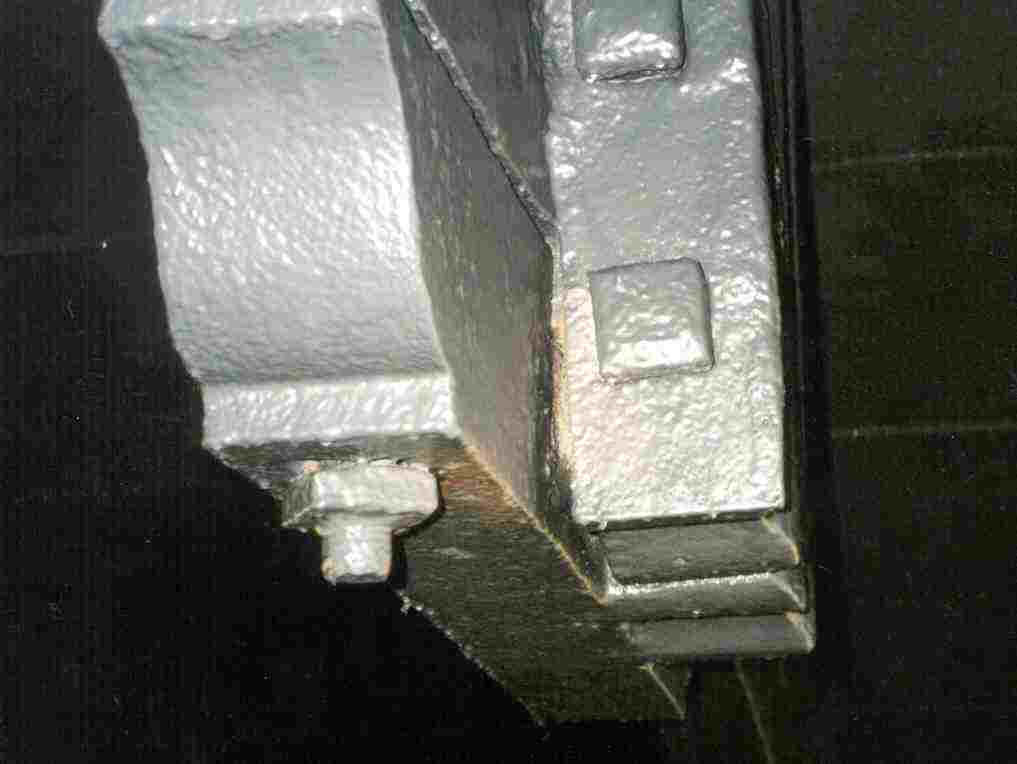

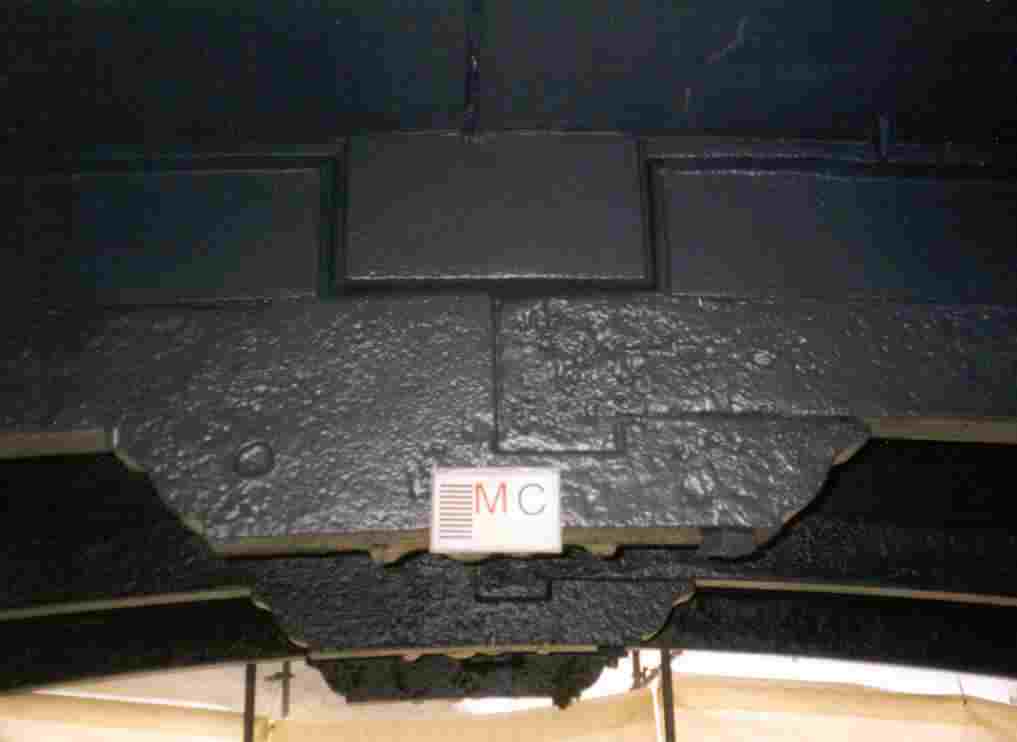

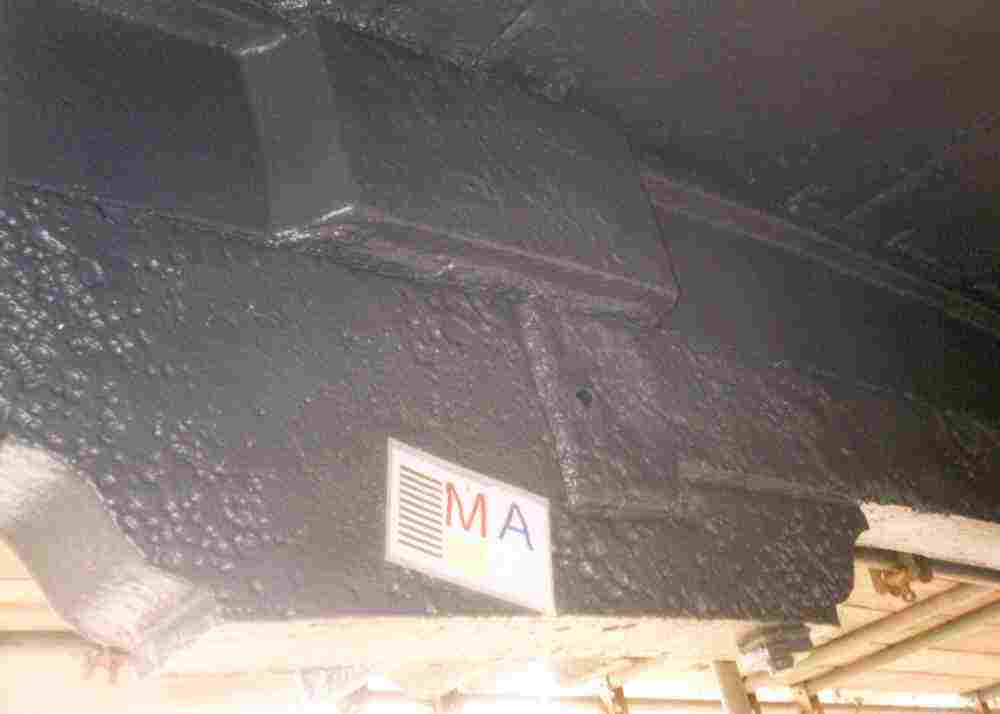

Crown joint detail
Crown joint detail
Crown joint detail
Crown joint detail
Crown joint detail
Crown joint detail
Crown joint detail

Project Team

Deborah Perkin - BBC Wales
Historic Adviser
David de Haan - Ironbridge Gorge Museum
Project Engineer
Jamie Hillier - Buro Happold
Erection Team
Royal Engineers, 51 Squadron (Air Assist) Led by Lt. Ben Day
Iron Castings
Nigel Downs - H.Downs & Sons Ltd Huddersfield
Ironwork Technical Drawings
Bill Blake - English Metric Survey Team Heritage
Structural evaluation
Andrew Smith
Site Management
Alex Medhurst - Ironbridge Gorge Museum
Abutments/site support
Staff - Blists Hill Victorian village



The original ribs were cast in 2 pieces joining at the centre, each half weighing 5.75 tons. At half scale, they weigh only 15 cwt (680Kg). The span of 1 arc is 50feet (15.24m) and the chord length of each rib was 37 feet (11.3m). In the uprights holes would allow other parts of the bridge to be slotted in place.


The timber poles used for erection are 33 feet (10m) high, though the original scaffold poles would have stood in the river Severn and must have been nearly 70 feet (21.3m). They acted as derricks (cranes) and the frame may have been moved to a new position for each rib.


Only hemp ropes were used to build the model,hauled by teams of soldiers. Some ropes have since been replaced by steel cables for safety. A trial lift of a 5 ton weight using the scaffold, hemp ropes and pulleys required 25 people to raise it from the ground.


The original abutments are in stone, not brick as shown here, they provide support for the base plates. Only the middle 3 base plates out of a set of 5 have been used, these are only 1" (25mm) thick, unlike the originals which were 4" (100mm).
